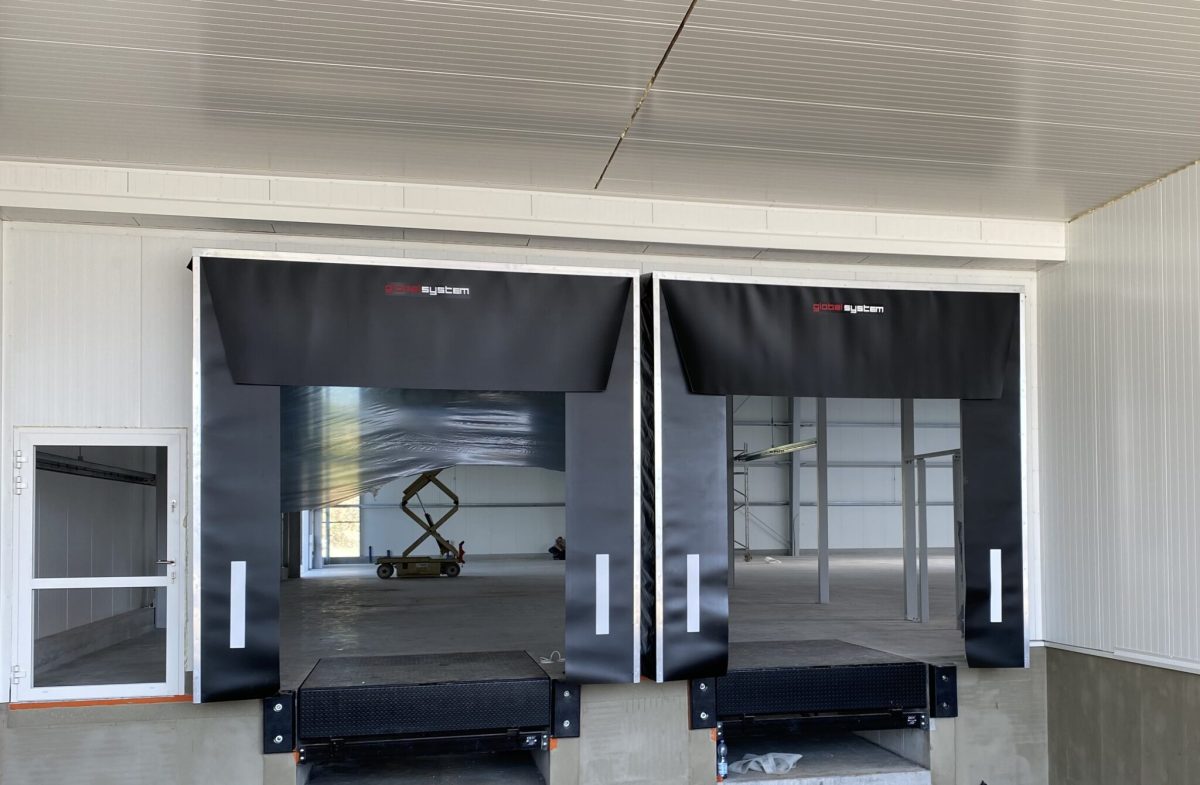

The purpose of dock shelter is to contain air movement during the loading process in order to prevent heat loss and limit any negative influence of such external factors as precipitation, dust and other particulates.
Dock seal dimensions depend on: width and height of trucks, door dimensions and sealing efficiency required. At request we provide dock seals of non-standard dimensions.
| Standardowe | Specjalne | |
|---|---|---|
| Width | 3400 mm ±10mm | 2500÷3600 ±10mm |
| Height | 3500 mm ±10mm | 2500÷4400 ±10mm |
| Depth | 600 mm ±10mm | 400÷800 ±10mm |
| Upper Flap Height | 1000 mm ±30mm | 500÷1600 ±30mm |
| Side Flap Width | 600 mm ±30mm | 400÷800 ±30mm |
| Mounting Height | 500 mm over the highest truck | |
| 3 mm PVC Flap Weight | 3500 g/m2 | |
| Color Standard | black | |
| Side Canvas Colour | black | |
| Working Temperature Range | -25ºC do +50ºC | |
An electro-hydraulic device bridging the gap between a warehouse and a truck’s cargo hold. It provides an uninterrupted loading process, facilitating the workflow. There are two versions available: steel or aluminum made from sheets of tread plate of standard load capacity 60kN.
Steel wheel guides complement the loading system equipment. They ensure correct positioning of a vehicle in front of a dock leveller. Wheel guides are made of galvanised thick-walled steel pipes. We offer two types of wheel guides: designed to be screwed down or designed to be embedded in concrete.
Rubber bumpers are installed to protect buildings and vehicles against damage during a docking manoeuvre. Bumpers are highly durable and have a long service lifetime.
Industrial doors are suitable for a variety of structures, such as industrial buildings, public buildings, trade and service buildings, logistic centres, big garages, factories and warehouses. We offer a wide variety of doors providing solutions for almost any type of building.
Our industrial doors are fully compatible with other loading system elements on our offer.
